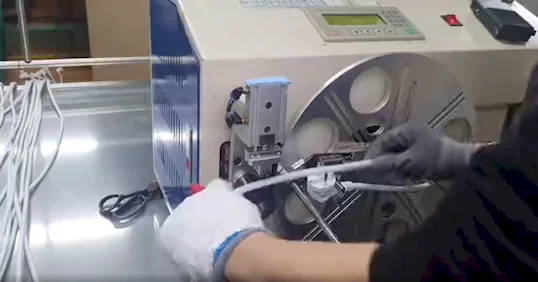

Coiling binding machine for socket WPM-210
Coiling binding machine for socket WPM-210
  • Coiling binding machine for socket WPM-210

  • item No : WPM-210
  • Coiling binding machine for socket WPM-210

    Power supplyAC220V AC110V

    Power frequency 50HZ/60HZ
    Machine introduction:
    This machine is suitable for AC power cords, DC power cords, USB cables, sheathed cables, shielded cables, video cables, HDMI high-definition cables, and other types of transmission lines using encapsulated core twist-tied into a bundle, can also be used to tape and other sealing plastic bag cores. This machine can reduce employee fatigue strength, improve work efficiency, save cable ties, and so on. Employees simply put the wires on the port it will automatically wind, then putting these wires around the Norse mouth, the machine will automatically Norse. The machine can set the binding wire length and number of laps, and count the yield. The machine adopts a PLC control program, and text display for parameter setting, easy to operate. Adjusting spacing, and replacement of fixtures is very convenient, ("8" -shaped tying, tying round universal, large range of bundled, widely used.)



  • Inquiry now
Detailed description

Coiling binding machine for socket WPM-210
Machine introduction:
This machine is suitable for AC power cords, DC power cords, USB cables, sheathed cables, shielded cables, video cables, HDMI high-definition cables, and other types of transmission lines using encapsulated core twist-tied into a bundle, can also be used to tape and other sealing plastic bag cores. This machine can reduce employee fatigue strength, improve work efficiency, save cable ties, and so on. Employees simply put the wires on the port it will automatically wind, then putting these wires around the Norse mouth, the machine will automatically Norse. The machine can set the binding wire length and number of laps, and count the yield. The machine adopts a PLC control program, and text display for parameter setting, easy to operate. Adjusting spacing, and replacement of fixtures is very convenient, ("8" -shaped tying, tying round universal, large range of bundled, widely used.)


Parameters:




1

Power supply

AC220V AC110V

2

Power frequency

50HZ/60HZ

3

Rated power

 120W

4

 Winding length

 Adjustable

 5

Winding laps

 Adjustable

 6

 Winding speed

Adjustable

 7

 Scope of application

 Norse  length

Norse diameter range

65-120mm

Φ4—Φ18mm

 80-140mm

Φ8—Φ28mm

115-180mm

 Φ18—Φ40mm





140-220mm

 Φ28—Φ50mm

 8

 Norse laps

Can be set (recommended 3-6 laps)

 9

cable ties

 Packet core cable ties, cable ties of coreless

 10

 protective device

 Fuses, fault alarm shutdown

 11

 Size(LXWXH)

 400x380x580mm

 12

Total weight

 40-72Kg
