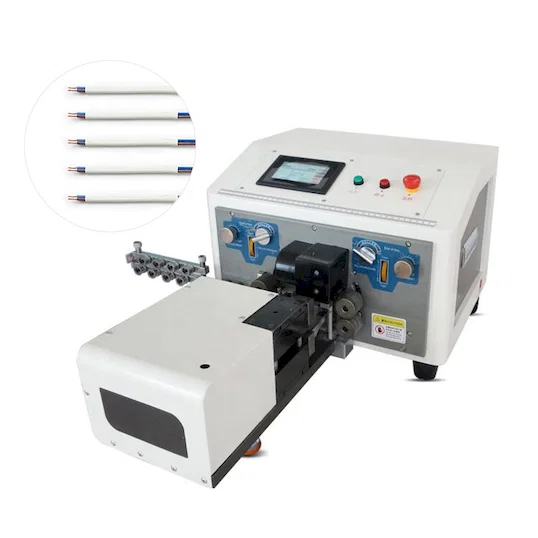

Flat double-layer Cable Cutting stripping twisting Machine WPM-320
Flat double-layer Cable Cutting stripping twisting Machine WPM-320
  • Flat double-layer Cable Cutting stripping twisting Machine WPM-320

  • item No : WPM-320
  • Flat double-layer Cable Cutting stripping twisting Machine, Full Automatic Electric Wire Stripping Machine, Wire Stripping Twisting Machine, Cable Cutting And Stripping Machine Electric Wire Stripping Machine, Copper Cable Stripping Machine, Wire Stripping Twisting Machine Outer Jacket And Core Wire Stripping Machine, Cable Cutting And Stripping Machine, Flat Cable Stripping Machine, Multi Core Cable Stripping Machine
    Function Wire cutting, double-end stripping and twisting, middle stripping
    Wire range 2*(0.3-2.0mm²)+twisting
    Cutting length 0.1mm-99999.9mm
    Stripping length Sheathed wire:   head:0.1-250mm       tail: 0.1-70mm
    Inner core:      head:0.1-30mm        tail: 0.1-30mm
    Stripping accuracy Silent hybrid stepper motor 0.01mm
    Intermediate strip Can be customized
    Capacity 500-1500 / h
    Blade material Imported tungsten steel / high-speed steel
    Power AC110V/220V  50/60HZ
    Body size 565mm * 385mm * 370mm
    Bodyweight 43kg
    Remark function Automatic entry/exit, timing start, jog adjustment


  • Inquiry now
Detailed description
Flat double-layer Cable Cutting stripping twisting Machine
Function Wire cutting, double-end stripping and twisting, middle stripping
Wire range 2*(0.3-2.0mm²)+twisting
Cutting length 0.1mm-99999.9mm
Stripping length Sheathed wire:   head:0.1-250mm       tail: 0.1-70mm
Inner core:      head:0.1-30mm        tail: 0.1-30mm
Stripping accuracy Silent hybrid stepper motor 0.01mm
Intermediate strip Can be customized
Capacity 500-1500 / h
Blade material Imported tungsten steel / high-speed steel
Power AC110V/220V  50/60HZ
Body size 565mm * 385mm * 370mm
Bodyweight 43kg
Remark function Automatic entry/exit, timing start, jog adjustment
Full Automatic Electric Wire Stripping Machine, Wire Stripping Twisting Machine, Cable Cutting And Stripping Machine Electric Wire Stripping Machine, Copper Cable Stripping Machine, Wire Stripping Twisting Machine, Outer Jacket And Core Wire Stripping Machine,Cable Cutting And Stripping Machine, Flat Cable Stripping Machine, Multi Core Cable Stripping Machine
     Applicator
 Flat double-layer Cable Cutting stripping twisting Machine, Full Automatic Electric Wire Stripping Machine, Wire Stripping Twisting Machine, Cable Cutting And Stripping Machine Electric Wire Stripping Machine, Copper Cable Stripping Machine, Wire Stripping Twisting Machine, Outer Jacket And Core Wire Stripping Machine,Cable Cutting And Stripping Machine, Flat Cable Stripping Machine, Multi Core Cable Stripping Machine

Full Automatic Electric Wire Stripping Machine, Wire Stripping Twisting Machine, Cable Cutting And Stripping Machine Electric Wire Stripping Machine, Copper Cable Stripping Machine, Wire Stripping Twisting Machine, Outer Jacket And Core Wire Stripping Machine, Cable Cutting And Stripping Machine, Flat Cable Stripping Machine, Multi Core Cable Stripping Machine
