High-end big circle double tie type automatic meter cutting wire strip
High-end big circle double tie type automatic meter cutting wire strip High-end big circle double tie type automatic meter cutting wire strip
  • High-end big circle double tie type automatic meter cutting wire strip

  • item No : WPM-CPRT-02TH

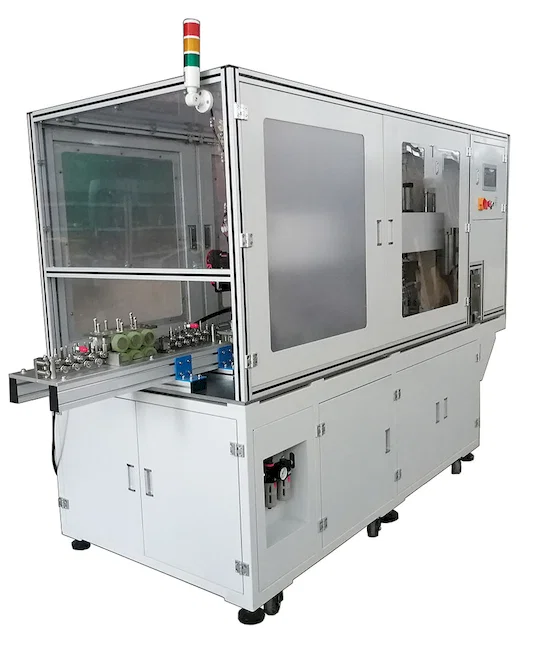

  • High-end big circle double tie type automatic meter cutting wire stripping and winding machine WPM-CPRT-02TH
    Applicable wire diameter 4-8mm
    Cutting length 3-14m
    Cutting line length accuracy: ±15 mm
    Tie the outer circle with double ties
    The inner diameter of the circle is 200-300mm (adjustable)
    Binding diameter ≤40mm
    Desquamation mode complete desquamation at both ends
    Head retention length 200-350mm (adjustable)
    Head peeling length 17-32mm (adjustable)
    Tail length 200-350mm (random value within the interval)
    Tail stripping length 20-100mm (adjustable)
    Production efficiency: 200-380pcs /H (3-14m)
    Applicable binding tape: Coated iron core ≤ 7.5kg/roll
    Applicable air pressure: 0.5-0.6mpa
    Power supply: NATIONAL standard 220V/50Hz
    Machine power: 4KW/H
    Machine size: about 2500L*1100W*1850Hmm
    Machine weight: about 1200KG

  • Inquiry now
Detailed description
High-end big circle double tie type automatic meter cutting wire stripping and winding machine WPM-CPRT-02TH
Technical parameters
Applicable wire diameter 4-8mm
Cutting length 3-14m
Cutting line length accuracy: ±15 mm
Tie the outer circle with double ties
The inner diameter of the circle is 200-300mm (adjustable)
Binding diameter ≤40mm
Desquamation mode complete desquamation at both ends
Head retention length 200-350mm (adjustable)
Head peeling length 17-32mm (adjustable)
Tail length 200-350mm (random value within the interval)
Tail stripping length 20-100mm (adjustable)
Production efficiency: 200-380pcs /H (3-14m)
Applicable binding tape: Coated iron core ≤ 7.5kg/roll
Applicable air pressure: 0.5-0.6mpa
Power supply: NATIONAL standard 220V/50Hz
Machine power: 4KW/H
Machine size: about 2500L*1100W*1850Hmm
Machine weight: about 1200KG
Main accessories:
Cylinder: Yadeke cylinder and solenoid valve
Motor: Winding main servo motor 1000W Turbot
Motor: take line translation servo motor Turbot 1500W
Motor: online translation servo motor Dongling 750W
Motor: winding up and down 57 closed-loop mine race
Motor: Twisting and strapping belt spitting belt 57 stepper motor thunder race
Motor: storage tape motor 6W
Slide block: take line translation double slide block
Guide rail: lower paw translation double guide rail
PLC: vigor
Screen: Dimension control 7"
Power supply: clear weft
Frame: the iron frame is painted blue and white
Safety protection: stop when the door opens
Lack of material alarm: three-color lamp buzzes
Frame: the appearance of iron frame is painted blue and white
Infinitely variable speed active line unwinding machine
Incoming material capacity ≤150KG
Incoming wire tray inner hole diameter 50-100mm
The outer diameter of the incoming wire reel is ≤600mm
The thickness of the incoming wire coil ≤400mm
Machine power: 750W
Machine size: about 1450L*800D*980Hmm
Machine weight: about 100KG
ADAPTS the main engine wiring speed
With line storage function
Tension function
Deceleration function
Adaptive hole size of hollow wire tray
Single axle single work position
