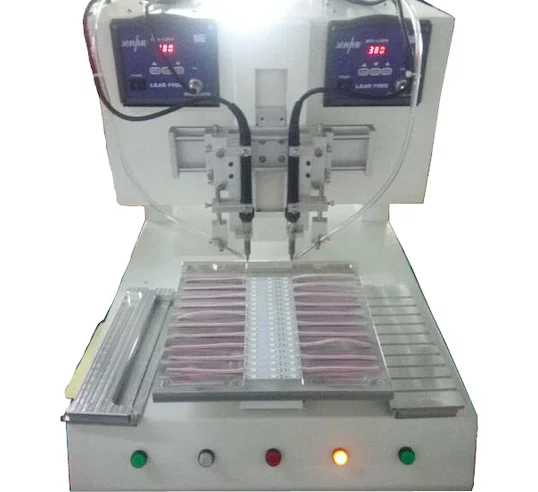

LED Module Soldering Machine WPM-142
LED Module Soldering Machine WPM-142
  • LED Module Soldering Machine WPM-142

  • item No : WPM-142
  • LED Module Soldering Machine WPM-142
    Size    45cm*50cm*60cm
    Weight    45kg
    Power    350W
    Max stroke    Y axis max stroke is 260mm, Z axis max stroke is 120mm
    Range of  temperature    0-480℃
    Control of the tin output    420 stepper motor
    Control system    Single-chip program
    Soldering head supported OD of Iron tip    1.0-5.5mm
    Soldering head heat method    120W high-frequency heating
    Transfer method    Belt drive
    Supported in wire diameter    0.1mm-1.2mm
    Soldering fast speed    0.01sec
    Repeat accuracy    ±0.02mm
    Track slide mode    Straight line
    Governance structure    Aluminum CNC engraving

  • Inquiry now
Detailed description
LED Module Soldering Machine WPM-142
Description
Full automatic soldering and soldering quality is better than manual soldering
This LED module soldering machine has a perfect soldering program, no fake tin, easy operation, and fast
LED module output:3000~5000 pcs/h;
Lamp post output:2000~3000pcs/h
Save 4 to 5 labor.
High-power heating controller to ensure the stability of continuous solder
Double soldering heads, can solder 2 points per time
Adopts dual-rail structure, more stable

Specification
Voltage    AC220V-50Hz
Size    45cm*50cm*60cm
Weight    45kg
Power    350W
Max stroke    Y-axis max stroke is 260mm, Z-axis max stroke is 120mm
Range of  temperature    0-480℃
Control of the tin output    420 stepper motor
Control system    Single-chip program
Soldering head supported OD of Iron tip    1.0-5.5mm
Soldering head heat method    120W high-frequency heating
Transfer method    Belt drive
Supported in wire diameter    0.1mm-1.2mm
Soldering fast speed    0.01sec
Repeat accuracy    ±0.02mm
Track slide mode    Straight line
Governance structure    Aluminum CNC engraving
