Pneumatic Cable Stripping Machine WPM-330
Pneumatic Cable Stripping Machine WPM-330
  • Pneumatic Cable Stripping Machine WPM-330

  • item No : WPM-330
  • WPM-330 Pneumatic wire stripping machine, Bevel Pneumatic Wire Stripper Machine, Wire Peeling Machine, Copper Wire Stripper Stripping Machine
    Stripping  length:330MM
    Wire  Dia.:0-20mm

    Air  Pressure:0.5-0.7mpa
    Voltage:220V/50HZ 110V//60HZ
    Force:84-196KG
    Weight:65KG
    Size: L1100*W550*H450mm
  • Inquiry now
Detailed description

WPM-330 Pneumatic wire stripping machine, Bevel Pneumatic Wire Stripper Machine, Wire Peeling Machine, Copper Wire Stripper Stripping Machine
Function
1. Bevel design, according to somatology.
2. Dual-driving cylinder, no spring breakage.
3. Self-feeding oil and supply. A timely oil supply to the cylinder can decrease the abrasion of the interior cylinder and lengthen life.
4. Special sliding holder, balance stroke, and high peeling precision. Electric control, easy operation.
5. Adjustable structure, and wire thickness.

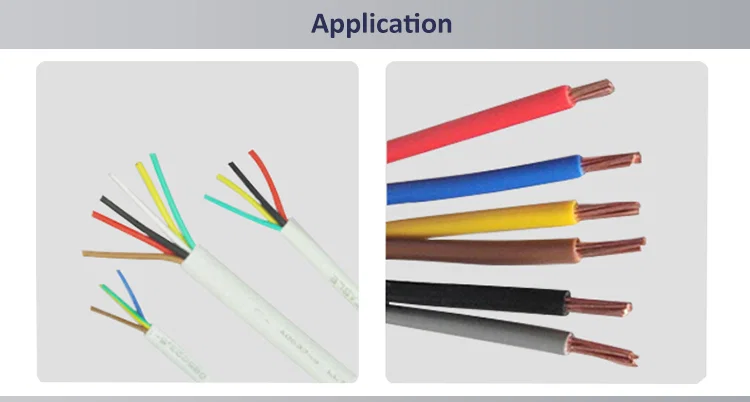

6. Suitable for short cables with small diameters, such as AC/DC, power wire, computer cable, electronic cable, and multi-core cable.

wire stripping machine, cable stripping machine, wire crimping machine, automatic crimping machine, terminal crimping machine, wire
Model: WPM-330
Stripping  length:330MM
Wire  Dia.:0-20mm
Air  Pressure:0.5-0.7mpa
Voltage:220V/50HZ 110V//60HZ
Force:84-196KG
Weight:65KG
Size: L1100*W550*H450mm

Bevel Pneumatic Wire Stripper Machine, Wire Peeling Machine, Copper Wire Stripper Stripping MachineCable stripping machine, Bevel Pneumatic Wire Stripper Machine, Wire Peeling Machine, Copper Wire Stripper
sample display of Bevel Pneumatic Wire Stripper Machine, Wire Peeling Machine, Copper Wire Stripper Stripping Machine

Specifications:



Model

WPM-305

WPM-310

WPM-315

WPM-330

WPM-416

Wire Size

1 - 5mm

1 - 10mm

1 - 15mm

1 - 20mm

1 - 30mm

Stripping Length

3 - 50mm

3 - 100mm

3 - 150mm

3 - 330mm

3 - 150mm

Cylinder Dia.

Ø40

Ø50

Ø60

Ø60

Ø80

Force

31-37Kg

49-115Kg

84-196Kg

84-196Kg

165-300Kg

Power Supply

220V

220V

220V

220V

220V

Dimension

40×30×27cm

48×33×28cm

60×42×36cm

110×55×45cm

80×62×55cm

Net. Weight

20Kg

25Kg

35Kg

65Kg

50Kg

Packing

Packed in Wood Case (Standard Export Packing)




FAQ:

1 Price terms

The price is based on EXW/FOB, if you request CFR or CIF, please give us your delivery port, and we will give you the CFR price or CIF price for reference.

2. What is your main market?

There are kinds of different clients from Asia, Africa, America, and Europe market.

3 . Could provide a professional solution based on our product?

We always promote suitable solutions based on products and satisfy clients with cost-down requirements.

4 Can we provide the sample for testing?

Yes, It will be a pleasure if u provide us with the sample for testing.

5 Do u test all goods before delivery?

Yes,100% test before shipment.

JINGWEI™ products are tested and guaranteed to keep in good quality with one year warranty excluding consumable parts.
If any main parts have quality problems, we will provide new parts and send them to you to change at once with detailed technical support and video illustration, or our experience engineer help to solve them. All problems and questions can be responded to within 24 hours after receiving email/phone/other chatting tools.
