Pneumatic electronic wire stripping and twisting machine WPM-200T
Pneumatic electronic wire stripping and twisting machine WPM-200T Pneumatic electronic wire stripping and twisting machine WPM-200T
  • Pneumatic electronic wire stripping and twisting machine WPM-200T

  • item No : WPM-200T
  • stripping and twisting machine, Pneumatic Wire Stripping Twisting Machine, Pneumatic Manual Multi-Core Wire Stripping Twisting Machine, High-Quality Wire Stripping And Twisting Machine
    Model:  WPM-200T
    Air Source:  6KG
    Strip and Twist Length:  3-45MM
    Power Supply: 220V (50HZ)
    Power:  30W
    Suitable Wire Types: Power Line, Electronic Wire, Multicore Wire
    Length Requirement:  〉5mm
    Weight:  12KG
    Machine Size: 320*180*170mm
  • Inquiry now
Detailed description

wire stripping twisting, wire stripping, and twisting machine, Pneumatic Wire Stripping Twisting Machine, Pneumatic Manual Multi-Core Wire Stripping Twisting Machine, High-Quality Wire Stripping, And Twisting Machine

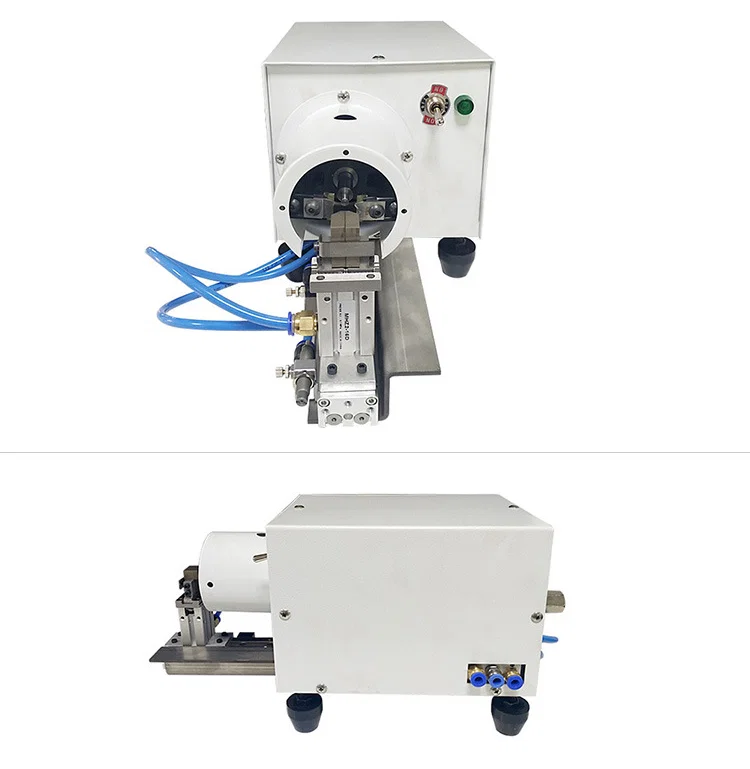

 The use of electric footswitch control reduces the labor intensity of workers, convenient operation, and greatly improves work efficiency; Clip wire into modules, they will grip the wire, and then started the work template by linking piece slides up and down, located in the template, the blade is driven by cylinder bridge start peeling, template side of torsion and gears in the cylinder of the rack and pinion gear, driven by big gears with twisted together to complete the twisted line, peeling and twisted wire should be
divided into two steps to complete, the operation is very simple, and ordinary employees can easily be trained to mount guard operation machines.

Specifications: Name: stripping and twisting machine
Model:  WPM-200T
Air Source:  6KG
Strip and Twist Length:  3-45MM
Power Supply: 220V (50HZ)
Power:  30W
Suitable Wire Types: Power Line, Electronic Wire, Multicore Wire
Length Requirement:  〉5mm
Weight:  12KG
Machine Size: 320*180*170mm

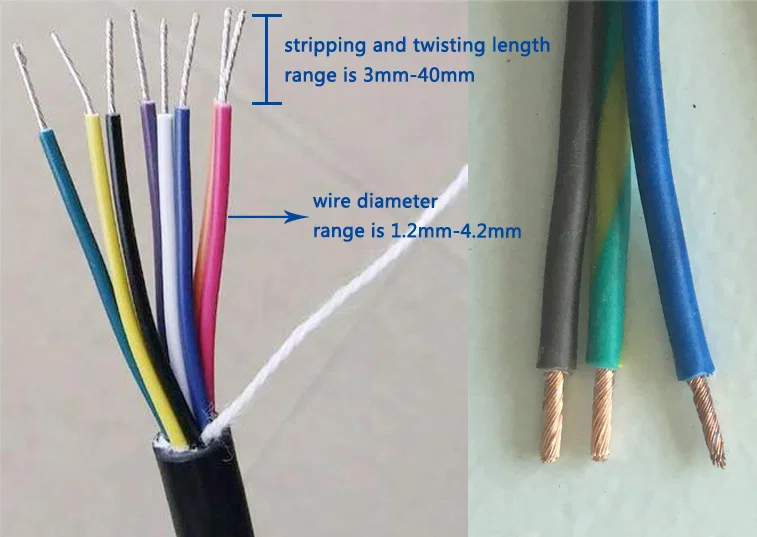

Pneumatic electronic wire stripping and twisting machine, Pneumatic Wire Stripping Twisting Machine, Pneumatic Manual Multi-Core Wire Stripping Twisting Machine, High-Quality Wire Stripping And Twisting MachinePneumatic electronic wire stripping and twisting machine, Pneumatic Wire Stripping Twisting Machine, Pneumatic Manual Multi-Core Wire Stripping Twisting Machine, High-Quality Wire Stripping And Twisting Machinesample result of Pneumatic electronic wire stripping and twisting machine, Pneumatic Wire Stripping Twisting Machine, Pneumatic Manual Multi-Core Wire Stripping Twisting Machine, High-Quality Wire Stripping And Twisting Machine
