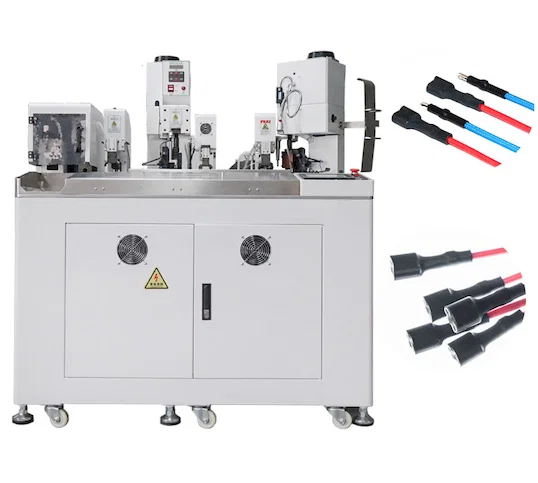

Automatic cable both sides crimping and heating shrink tube insertion machine WPM-068
Automatic cable both sides crimping and heating shrink tube insertion machine WPM-068
  • Automatic cable both sides crimping and heating shrink tube insertion machine WPM-068

  • item No : wpm-068
  • Automatic cable both sides crimping and heating shrink tube insertion machine
    Wire range:AWG24#~AWG12#
    Cutting length: 75-9999mm(can be customized)
    Cutting accuracy: 0.5mm+cutting lengthx0.2%
    Stripping length: 0-8mm.
    Crimping force: 2.0T
    Suitable applicator: OPT side feed/end feed crimping die and Korean crimping die or European crimping die
    Air pressure: 5-6kgf
    Size: 1800*800*1860MM
    Weight:about 600kg
  • Inquiry now

Detailed description


Automatic cable both sides crimping and heating shrink tube insertion machine

1. It is a fully automatic wire processing machine for wire cutting, stripping and crimping, shrink tube cutting, inserting,
pull and heating on the right place, largely improved the production capacity of wire harness processing.
2. With a large processing wire range from AWG24# to AWG12#, All setting and adjustment procedures can be controlled from the LCD touch screen.
4. LCD controlled by high precision motor ensure the cutting, stripping, crimping, and insertion accuracy.
4. Integrated detector system, detect whether there is wire, whether there is terminal, whether there is air pressure, bad crimping, and tube
inserting checking etc guarantee the machine working excellently.
6. It is suitable for OPT side-feed/end feed crimping die and Korean crimping die or European crimping dies as well.
7. it can be equipped with CFM(crimping force monitor) to control the crimping force during the processing, keep the finished products of high quality.
Power: AC220v/50/60hz
Capacity:1800pcs~2200pcs/H
Function: wire cutting and stripping, both sides crimping and inserting heating shrink tube.
Wire range: AWG24#~AWG12#
Cutting length: 75-9999mm(can be customized)
Cutting accuracy: 0.5mm+cutting lengthx0.2%
Stripping length: 0-8mm.
Crimping force: 2.0T
Suitable applicator: OPT side-feed/end feed crimping die and Korean crimping die or European crimping die
Air pressure: 5-6kgf
Size: 1800*800*1860MM
Weight: about 600kg
