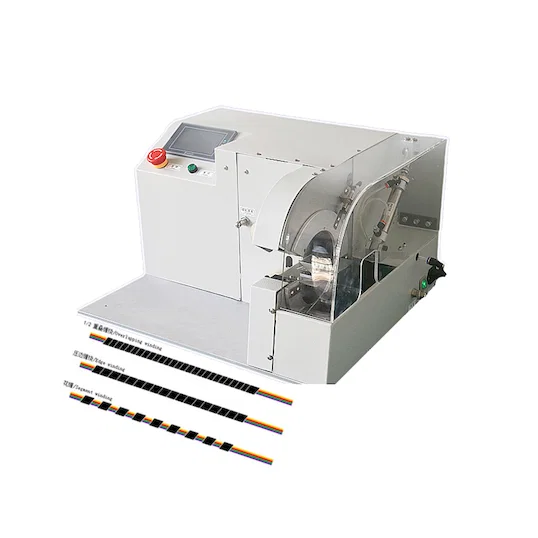

Wire Harness Tape Wrapping Machine WPM-303A
Wire Harness Tape Wrapping Machine WPM-303A Wire Harness Tape Wrapping Machine WPM-303A
  • Wire Harness Tape Wrapping Machine WPM-303A

  • item No : WPM-303A
  • Wire Harness Tape Wrapping Machine, Wire Tape Wrapping Machine, Tape Wrapping Machine
    Model Number WPM-303A
    Usage Wire harness tape wrapping
    Warranty 1 Year
    Working mode Full winding, point winding, multi-section winding, etc.
    Air supply 0.4-0.8MPa
    Winding length Unlimited
    Winding wires diameter ≤40MM, customized
    Tape roll specification Inner D38/32mm, outer<140mm, width5-35mm
  • Inquiry now
Detailed description
Wire Harness Tape Wrapping Machine WPM-303A
It can wrap various wires and tubes with tape and is suitable for new energy wire harness processing industry equipment such as automobiles, aviation, home appliances, machinery, electronics, and wire harnesses.
Item value
Place of Origin China
Model Number WPM-303A
Usage Wire harness tape wrapping
Warranty 1 Year
Working mode Full winding, point winding, multi-section winding, etc.
Air supply 0.4-0.8MPa
Winding length Unlimited
Winding wires diameter ≤40MM, customized
Tape roll specification Inner D38/32mm, outer<140mm, width5-35mm
Tape type PVC/velvet/acetate tape (without release paper), etc.
The highest winding frequency is 12R/S
Operation mode Touch screen, foot switch
Voltage AC220V/110V
1. Compared with different types of tape without insulation paper (such as duct tape, PVC tape, etc.)
2. Keep flat and wrinkle-free, and ensure that the duct tape is overlapped with one-half of the previous lap.

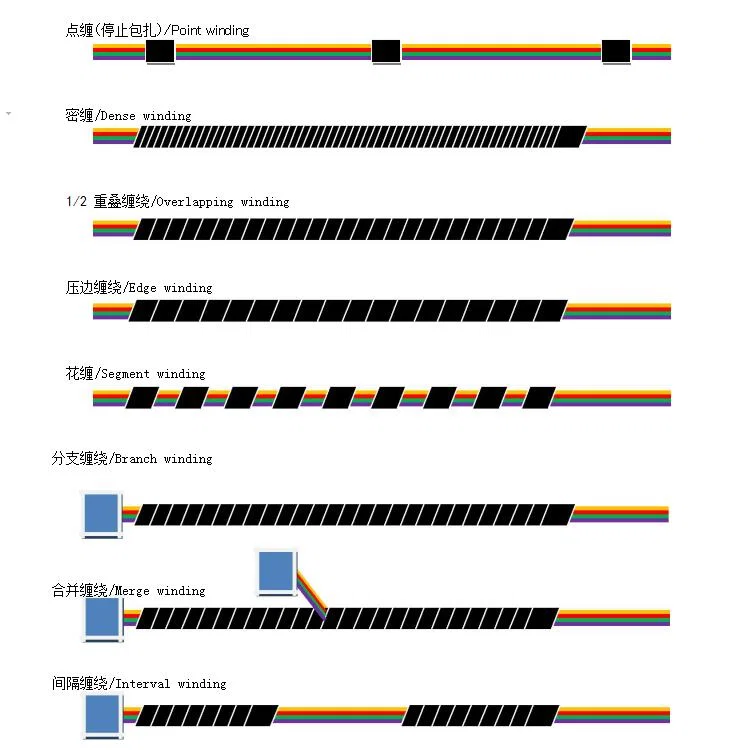

3. Can switch different forms of wrapping mode, wrap a certain part of the line, and the spiral wrapping of different positions of the line.
4. Can realize winding number and speed setting, output display function.
5. Blades can be replaced quickly.
6. It is suitable for wrapping the tape after crimping two contacts of wires together, adjusting the length of the tape with digital,
convenient, fast, and accurate.
7. It has stable quality and high efficiency, which can reduce the operation strength.
8. With the feeding wheel driver, make the tape uniform and save effort.
 Wire Harness Tape Wrapping Machine, Wire Tape Wrapping Machine, Tape Wrapping Machine sample of Wire Harness Tape Wrapping Machine, Wire Tape Wrapping Machine, Tape Wrapping Machine
