Double layer round sheath wire stripping cutting machine WPM-YHT3
Double layer round sheath wire stripping cutting machine WPM-YHT3
  • Double layer round sheath wire stripping cutting machine WPM-YHT3

  • item No : WPM-YHT3
  •  Double layer round sheath wire stripping cutting machine WPM-YH3
    Fiber Wire Strip Machine, Jacket Cable Strip Machine, Cable Stripping Machinery
    Wire out diameter 2-7mm
    Strip cores 2/3/4
    Cutting length 0.1mm-99999.9mm
    Stripping length Outer layer: head: 1-120 mm tail: 1-50mm
    Core line: head: 0.1-30mm tail: 2-30mm
  • Inquiry now
Detailed description
Double layer round sheath wire stripping cutting machine WPM-YH3
Fiber Wire Strip Machine, Jacket Cable Strip Machine, Cable Stripping Machinery

Function Wire cutting, double-end stripping, middle stripping
Wire out diameter 2-7mm
Strip cores 2/3/4
Cutting length 0.1mm-99999.9mm
Stripping length Outer layer: head: 1-120 mm tail: 1-50mm
Core line: head: 0.1-30mm tail: 2-30mm
Stripping accuracy Silent hybrid stepper motor 0.01mm
The intermediate strip can be customized
Capacity 1000-2000 pcs/h (L = 200mm)
Blade material Imported tungsten steel/high-speed steel
Air Pressure: 0.8 Mpa
Power AC110V/220V  50/60HZ  300W
Body size 420mm*460mm*335mm
Body weight 38kg
Remark function Automatic entry/exit, timing start, jog adjustment

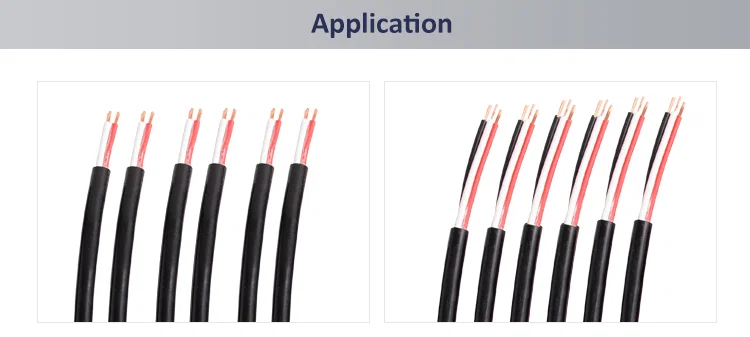

Double layer round sheath wire stripping cutting machine WPM-YH3 Fiber Wire Strip Machine, Jacket Cable Strip Machine, Cable Stripping Machinerysample display of Double layer round sheath wire stripping cutting machine WPM-YH3 Fiber Wire Strip Machine, Jacket Cable Strip Machine, Cable Stripping Machinery
