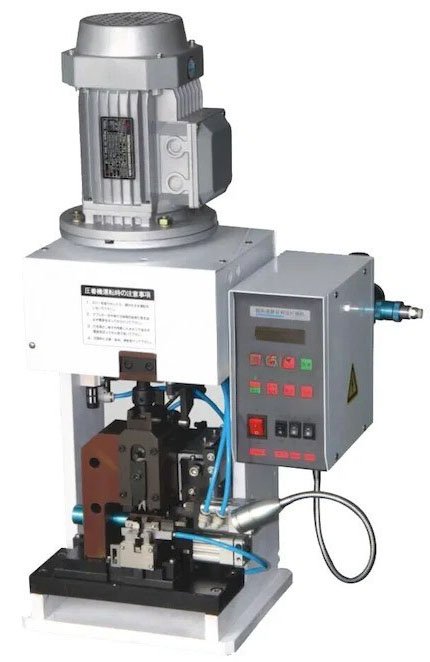

End feed wire stripping and crimping terminal machine WPM-2008A2-E
End feed wire stripping and crimping terminal machine WPM-2008A2-E
  • End feed wire stripping and crimping terminal machine WPM-2008A2-E

  • item No : WPM-2008A2-E
  • stripping crimping terminal machine, Wire Stripping Crimping Machine, Wire Crimp Machine

    MEASUREMENT    L500mm*W350mm*H730mm
    WEIGHT   86kg
    POWER SUPPLY    AC220V
    COMPRESSED AIR    0.3~0.4mpa
    PRESSURE   3000kg
    STRIPPING LENGTH    1.0-10.0mm
    Stripping accuracy 0.05~0.1mm
    Crimping accuracy 0.05~0.1mm
    CAPACITY   AWG#18-36#
    Feed way: End feed
    PRODUCTION CAPACITY    3000-3500pcs/h
  • Inquiry now
Detailed description
stripping crimping terminal machine
End feed wire stripping and crimping terminal machine (WPM-2008A2-E)
1. Wire stripping and Terminal Crimping can be done in a one-time cassette mold holder and skinning system combination to achieve a coherent motion machine.
2. Hight-precision parts assembly, adjustment method for the tuning screw, precision is more accurate.
3. This machine adopts Japanese SMC pneumatic components, energy saving, and no noise.
4. Electic adopts high quality. It’s saving and steady.

MEASUREMENT    L500mm*W350mm*H730mm
WEIGHT   86kg
POWER SUPPLY    AC220V
COMPRESSED AIR    0.3~0.4mpa
PRESSURE   3000kg
STRIPPING LENGTH    1.0-10.0mm
Stripping accuracy 0.05~0.1mm
Crimping accuracy 0.05~0.1mm
CAPACITY   AWG#18-36#
Feed way: End feed
PRODUCTION CAPACITY    3000-3500pcs/h
stripping crimping terminal machine, Wire Stripping Crimping Machine,Wire Crimp MachineApplications of stripping crimping terminal machine, Wire Stripping Crimping Machine,Wire Crimp Machine
