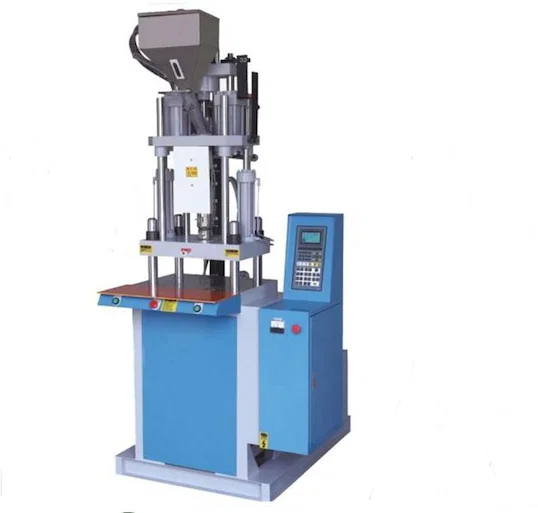

Vertical Type Injection Moulding Machine WPM-701-2T
Vertical Type Injection Moulding Machine WPM-701-2T
  • Vertical Type Injection Moulding Machine WPM-701-2T

  • item No : WPM-701-2T
  • Injection Moulding Machine, Plastic Injection Moulding Machine, Vertical Injection Molding Machine
    Screw diWPM-meter (mm)    ¢22 / ¢28
    (PS)Max Injection weight (g)    39 / 63
    (PS)Safe Shot Weight (oz)    1.4 / 2.2
    Screw stroke (mm)    105
    Screw speed rotation (r.p.m.)    0-150
    Nozzle contact force (t f)    2.4
    ClWPM-ping force (tons)    20
    Opening stroke (mm)    200
    Mold space (mm)    520x330
    Hydraulic ejector force (tons)    1.3
    Injector stroke (mm)    35
    Injection pressure (kg/cm2)    1625 / 1004
    Oil tank capacity (L)    90
    Drive motor (kW)    5.5
    Dimensions (L x W x H)M    1.4x 1.1 x 2.25
    Weight (kg)    800
  • Inquiry now
Detailed description
Vertical Type Injection Moulding Machine WPM-701-2T

Description:

1. WPM-701-2T vertical injection molding machine lock mold/vertical to cast, IS suitable for the common electric appliance plug, the electronic components, and so on small inlays to take shape.

2. Two(three sections)the temperature control/projects the speed/back pressure and so on not to have the section adjustment, suits components of the precise vertex to take shape.

3. WPM-701-2T injection molding machine fast lock mold/low pressure idling speed closes the mold, locks the mold exceptionally when then Automatically tight open the mold. This special safe design, and so on can get up the protective function to the mold.

4. The stop-ping die fixed/op die activity type,  takes shape inlays to have a very good localization in the mold. The end product has the fluid capping to leave the installment, the end product takes out extremely facilitates easily.

5. WPM-701-2T injection moulding machine electrically controlled fitting/hydraulic pressure fitting uses the domestically produced nWPM-e brand The precise durable revolution noise is low. Locks mold strength 15TON - 55TON, has PLC to program- the Electrically controlled computer single to press the control or the computer entire program- the electrically controlled computer single to press the control or the computer entire proportion(ratio presses ratio to flow )controls three kinds, may supply the customer choice.

6. May supplement Sand up mold IS with double slippery mold 2S. It Lets the operator have more convenient Production efficiency Gauguin security.

Specification

Model    WPM-701-2T
Screw diWPM-enter (mm)    ¢22 / ¢28
(PS)Max Injection weight (g)    39 / 63
(PS)Safe Shot Weight (oz)    1.4 / 2.2
Screw stroke (mm)    105
Screw speed rotation (r.p.m.)    0-150
Nozzle contact force (t f)    2.4
ClWPM-ping force (tons)    20
Opening stroke (mm)    200
Mold space (mm)    520x330
Hydraulic ejector force (tons)    1.3
Injector stroke (mm)    35
Injection pressure (kg/cm2)    1625 / 1004
Oil tank capacity (L)    90
Drive motor (kW)    5.5
Dimensions (L x W x H)M    1.4x 1.1 x 2.25
Weight (kg)    800
