IPEX Terminal Crimping Machine, Coaxial cable crimping machine
IPEX Terminal Crimping Machine, Coaxial cable crimping machine
  • IPEX Terminal Crimping Machine, Coaxial cable crimping machine

  • item No : WPM-IPEX
  • Applicable coaxial cable outer diameter range  1.13mm、 1.32mm、1.37mm、1.78mm、0.81mm
    Production efficiency  2200pcs/h
    Pressure  0.5~0.7Mpa (5~7bar)
    Power requirements  AC220~240V,50~60HZ;300VA
    Noise  <70d B (A)
    Size  350mmx260mmx200mm
    Weight  4kg
  • Inquiry now
Detailed description
IPEX Terminal Crimping Machine
Production description
1. The machine model specialized for coaxial cable crimping molding style, generous,energy-saving, stable. design, connecting coaxial cable, and the appearance design is beautiful
2. Use for series special terminal,Cutting, Moulding, Crimping Complete together.
3. The machine adopts Japan SMC pneumatic components, more reliable, more sturdy.
4. The machine electrical unit adopts modular parts, saving more and more energy&stable.

Application range
This machine is used for a special machine of I-PEX series precision connector terminal Moulding&Crimping. Furthermore, be suitable for molding the other associated connector terminal.

Function
The machine according to different terminals corresponding to the coaxial cable outer diameter models, such as 1.13mm,1.32mm,1.37mm,1.78mm,0.81mm each one. At the same time the machine is compact and portable, the PLC control operation is simple, can be converted in the manual/automatic.

Technical Specifications

Applicable coaxial cable outer diameter range  1.13mm、 1.32mm、1.37mm、1.78mm、0.81mm
Production efficiency  2200pcs/h
Pressure  0.5~0.7Mpa (5~7bar)
Power requirements  AC220~240V,50~60HZ;300VA
Noise  <70d B (A)
Size  350mmx260mmx200mm

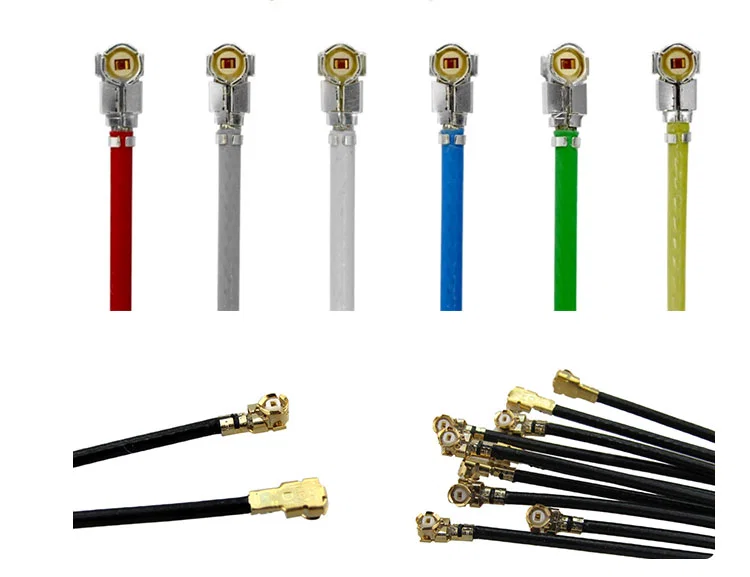

result display of IPEX Coaxial cable crimping machine, rg6 coaxial cable and connector crimping machine
