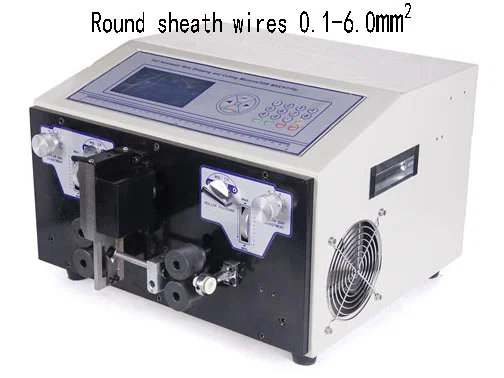

Jacket cable stripping machine WPM-09HT 6.0sq.mm
Jacket cable stripping machine WPM-09HT 6.0sq.mm
  • Jacket cable stripping machine WPM-09HT 6.0sq.mm

  • item No :
  • Wire cross-section: 0.1-6.0sq.mm
    Conduit diameter: 10mm
    Stripping length: Head side 0-50mm
    Tail side 0-50mm
    Cutting length: 1~60000mm
    Measurement: 39*35*25cm

  • Inquiry now

Detailed description


Features:

Automatic Full Computer Wire Stripping Machine

Adopt the advanced automation technology from Japan,Taiwan.

It is a kind of numerical control equipment.



Apply for:

Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps, toys,

and other various products of wire processing.

Optimal stripped wire PVC/teflon/silica gel line /. Glass fiber, etc.


Specification:


Available Wire Cross-Section Range: 0.1~6.0mm2(AWG10#-AWG32#)
Conduit Diameter: ¢10mm
Cutting Length: 1~60000mm
Cutting Tolerance:  ±(0.002×L)  (L=Cutting Length)
Stripping Length:  Head 0~50mm, Tail 0~50mm
Middle Stripping Section:  Max 13
Speed:   3000-6000pcs/h
Display Way:  English LCD display
Drive Mode:  4 Drives
Blade Material: Hard tungsten steel
Appropriate Wire:  Electrical wires with jacket,sheathed cables
Power   Supply:  220V/50Hz   110V/60Hz
Power Rating:  300W
Measurement: 390X350X255mm
Weight: 37kg
