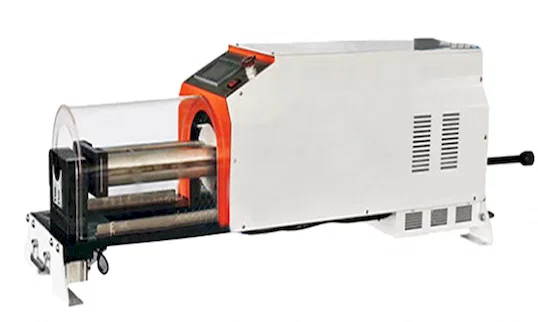

Pneumatic Rotary Wire Peeling Machine
Pneumatic Rotary Wire Peeling Machine Pneumatic Rotary Wire Peeling Machine Pneumatic Rotary Wire Peeling Machine Pneumatic Rotary Wire Peeling Machine
  • Pneumatic Rotary Wire Peeling Machine

  • item No :
  •  Pneumatic Rotary Wire Peeling Machine, This rotary knife pneumatic wire peeling machine is mainly used for stripping large cables. It is a special equipment for processing new energy DC cables. The maximum wire diameter is 50 mm, and the max stripping length is 100 mm.
    Control system Dedicated controller
    Stripping method Rotary peeling
    Stroke 0-300mm
    Voltage 220V 50-60HZ
    Air pressure 0.5-0.7Mp
    Power 200W
    Stripping diameter ø10-ø50mm
    Stripping tolerance ±0.2
    Speed 20-40pcs/min
    Size 1000x450x350mm
    Weight 80KG


  • Inquiry now
Detailed description

 Pneumatic Rotary Wire Peeling Machine, This machine is mainly used for stripping large cables, such as new energy DC cables with high-precision rotating and strong peeling. The maximum wire diameter is 50 mm, and the max stripping length is 100mm Adopt double blades, change without correction, and automatically find the machining center, which greatly increases productivity.



Control system

Dedicated controller

Stripping method

Rotary peeling

Stroke

0-300mm

Voltage

220V 50-60HZ

Air pressure

0.5-0.7Mp

Power

200W

Stripping diameter

ø10-ø50mm

Stripping tolerance

±0.2

Speed

20-40pcs/min

Size

1000x450x350mm

Weight

80KG
