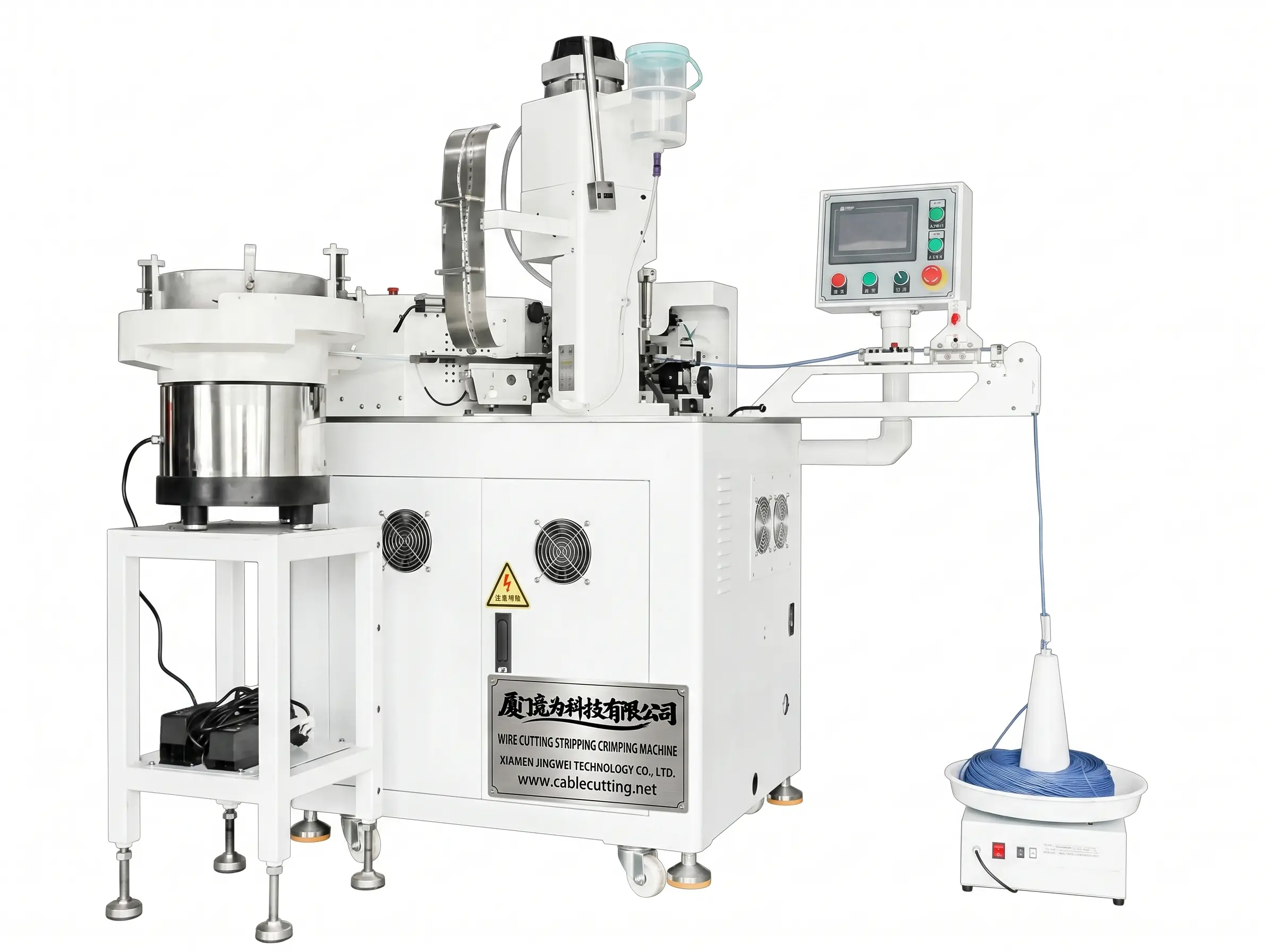

Automatic cable crimping sleeves insertion and twisting tinning machine WPM-018HS
Automatic cable crimping sleeves insertion and twisting tinning machine WPM-018HS
  • Automatic cable crimping sleeves insertion and twisting tinning machine WPM-018HS

  • item No : WPM-018HS
  • Automatic cable crimping sleeves insertion and twisting tinning machine
    Power: AC220v/50/60hz
    Capacity: 2000pcs~3000pcs/h(L=300MM)
    Function: wire cutting,stripping, one side cirmping with sleeve insertion another twisting tinning.
    Wire range: AWG14#-AWG24#(can be customized)
    Cutting length: 80-3000mm(can be customized)
    Cutting accuracy: 0.5mm+cutting lengthx0.2%
    Stripping length: 0.5-8mm(can be customized)
    Pressure: 2.0T
    Stroke: 30mm(40mm can be customized)
    Air pressure: 0.5mpa~0.6mpa

  • Inquiry now

Detailed description


Automatic cable crimping sleeves insertion and twisting tinning machine

1.It is a automated fully automatic wire processing machines with multi-functions wire cutting,stripping,crimping,sleeves insertion and twisting tinning.
2.Adopt high quality servo motor and V stripping blades the machine processing precisely, processing wire range from AWG24#~AWG14#.
3.Length of wire cutting&stripping and depth of wire cutting&stripping can be adjusted on touch screen,convenient&simple operation.
4.All required parameters such as wire feeding speed, cutting length,stripping length and crimping depth can be set and saved in the
LCD touchscreen,easy operation.
5.Intergrated detecting function, can detect wire exit or not, terminal exist or not, wire knot,crimping and air pressure etc.
6.Decreased set-up time and increased effective performance,therefore,overall productivity is increased and processing can be finished in less time.
7.it can be equipped with CFM(crimping force monitor) to controll the crimping force during the processing,keep the finished products with high quality.
Power: AC220v/50/60hz
Capacity: 2000pcs~3000pcs/h(L=300MM)
Function: wire cutting,stripping, one side cirmping with sleeve insertion another twisting tinning.
Wire range: AWG14#-AWG24#(can be customized)
Cutting length: 80-3000mm(can be customized)
Cutting accuracy: 0.5mm+cutting lengthx0.2%
Stripping length: 0.5-8mm(can be customized)
Pressure: 2.0T
Stroke: 30mm(40mm can be customized)
Air pressure: 0.5mpa~0.6mpa

Processing result display
