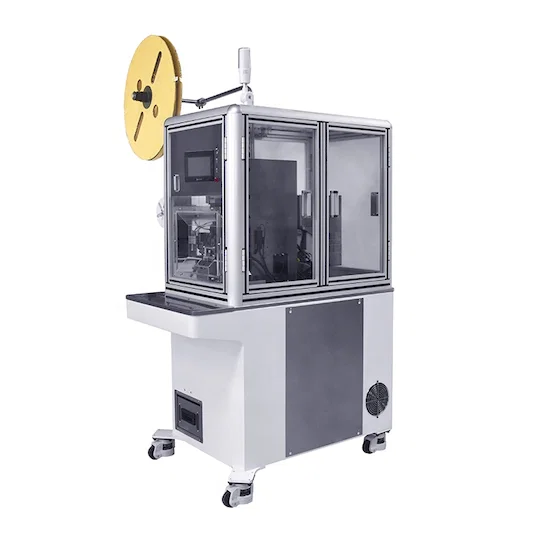

Semi automatic wire stripping seal insertion terminal crimping machine
Semi automatic wire stripping seal insertion terminal crimping machine
  • Semi automatic wire stripping seal insertion terminal crimping machine

  • item No : WPM-5030
  • Semi-automatic wire stripping seal insertion terminal crimping machine, sheathed cable seal loading machine
    Model WPM-5030
    Applicable wire range 0.2-2.5mm²
    Stripping length 0.1-10mm
    Cut precision ±0.02 mm
    Stroke 40mm
    Crimp capacity 3.0T
    Power 220V/110V/50/60HZ
    &
  • Inquiry now
Detailed description
Semi-automatic wire stripping seal insertion terminal crimping machine, sheathed cable seal loading machine
Model WPM-5030
Applicable wire range 0.2-2.5mm²
Stripping length 0.1-10mm
Cut precision ±0.02 mm
Stroke 40mm
Crimp capacity 3.0T
Power 220V/110V/50/60HZ
Display language Chinese/English
Compressed air 0.5-0.7MPA
External dimensions 850mm*880mm*1300mm (length, width, and height)
Weight 300KG
CFM Optional
Waterproof plug size ≤10*10mm


Semi automatic wire stripping seal insertion terminal crimping machine , sheathed cable seal loading machine
